Directing light beams in one direction

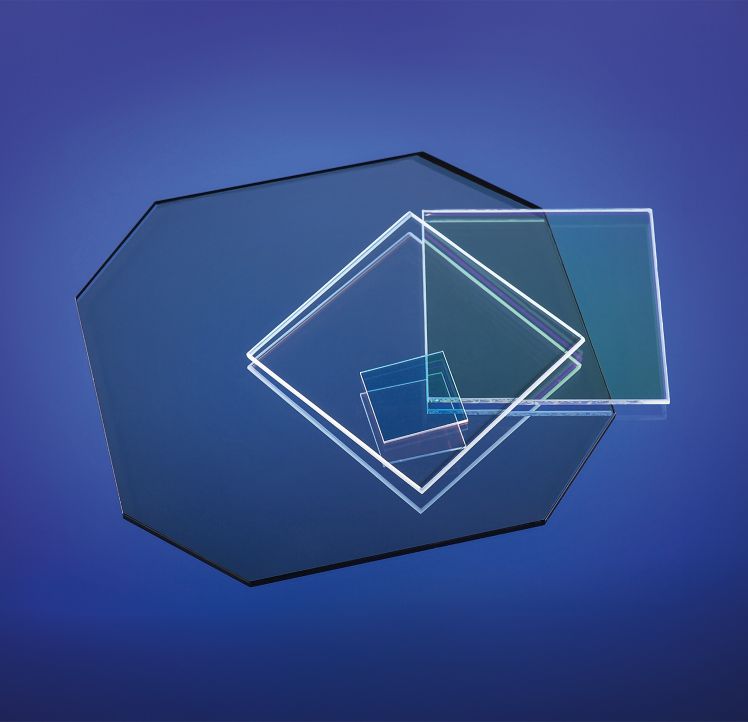

High-quality beam splitter coatings
High-quality and reproducible results – absolute precision is essential in medical technology, measurement technology, and many other industries. We produce high-quality beam splitter coatings that you can rely on.
The exact composition and manufacturing process for beam splitter coatings can vary depending on the type of beam splitter, such as dichroic beam splitters or polarizing beam splitters. The choice of materials and the specific coating structure are determined according to your desired optical properties and applications. How can we assist you in the field of beam splitter coatings? Contact us!
Technical specifications
Application
For separation of light rays, without changing the spectral range; for example, corresponding signals or images are generated at different locations through beam splitters
Coating types
Dichroic and metallic beamsplitters
Polarizing and non-polarizing beamsplitters
Bonded and non-bonded beamsplitters
Beamsplitters for single wavelength or broadband
Special beamsplitters as per client’s requirements
Our competences
Hard, scratch-resistant, thermally and mechanically stable coatings; high laser damage thresholds; for extreme environmental conditions; outer space compatible; saltwater resistant
Spectral range
300 nm to 1.600 nm; other wavelengths on request
Substrate material
Optical glasses, flat glasses, Borosilicate glasses, fuses silica, special materials on request
Dimensions

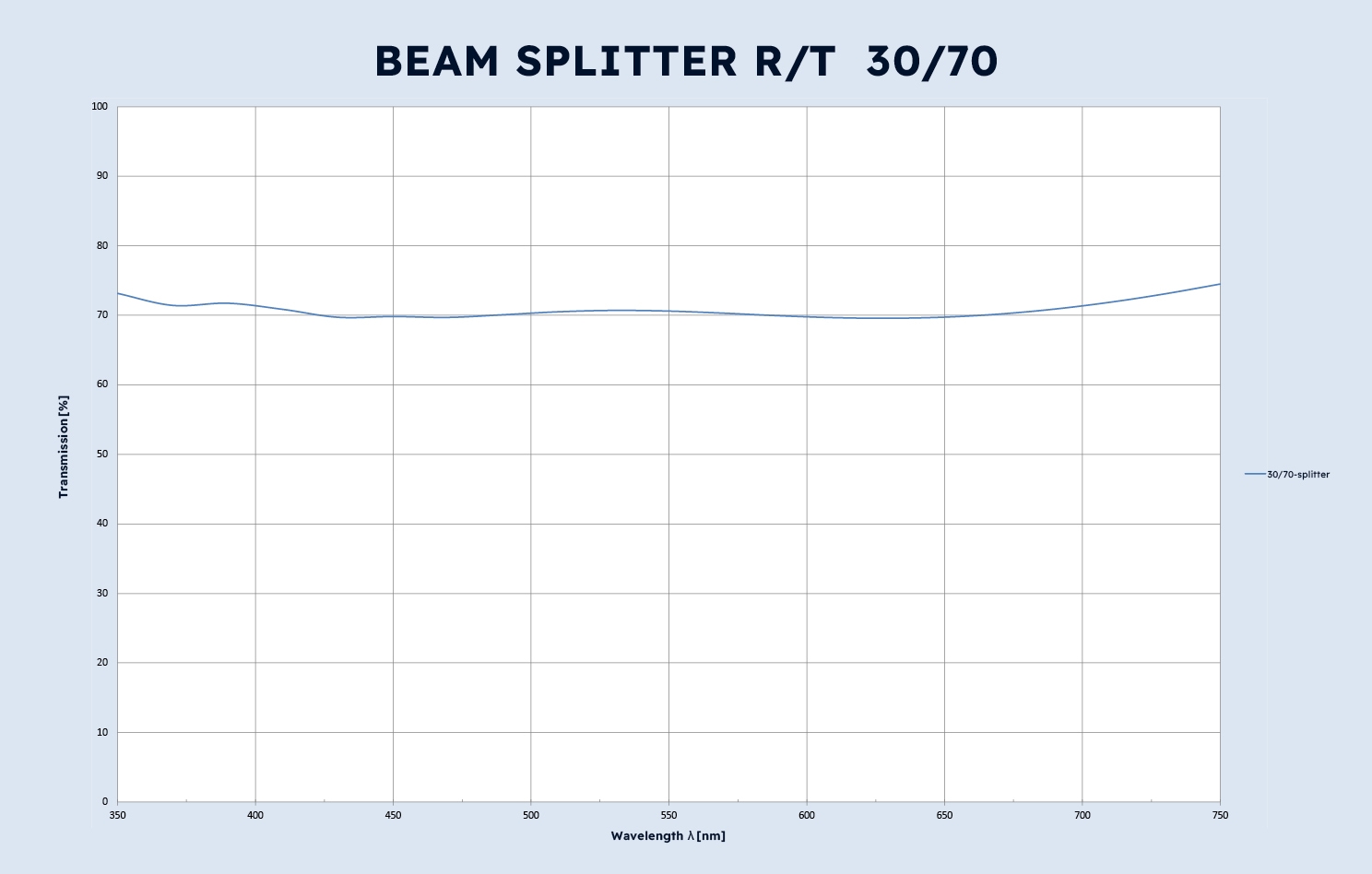

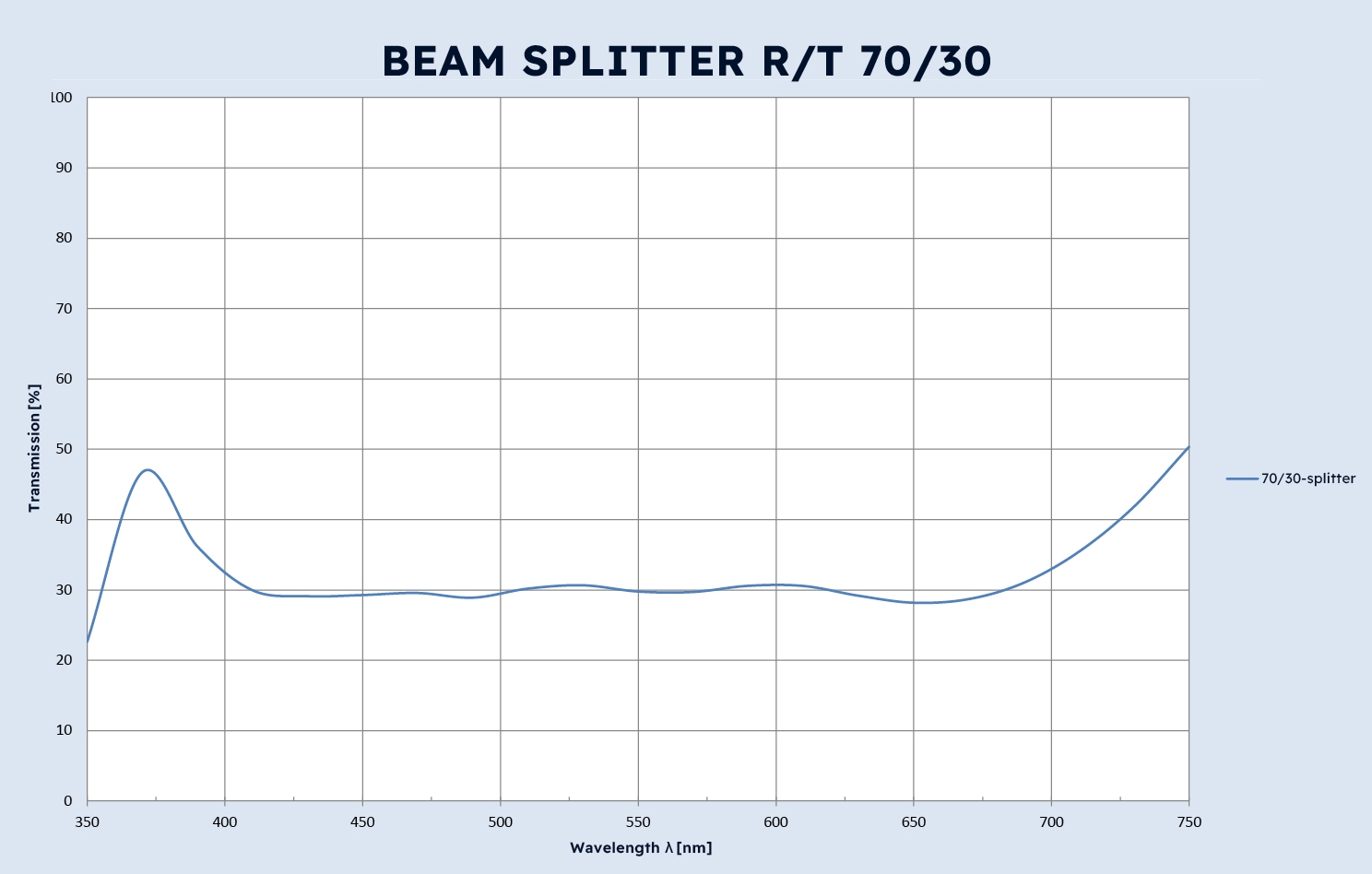

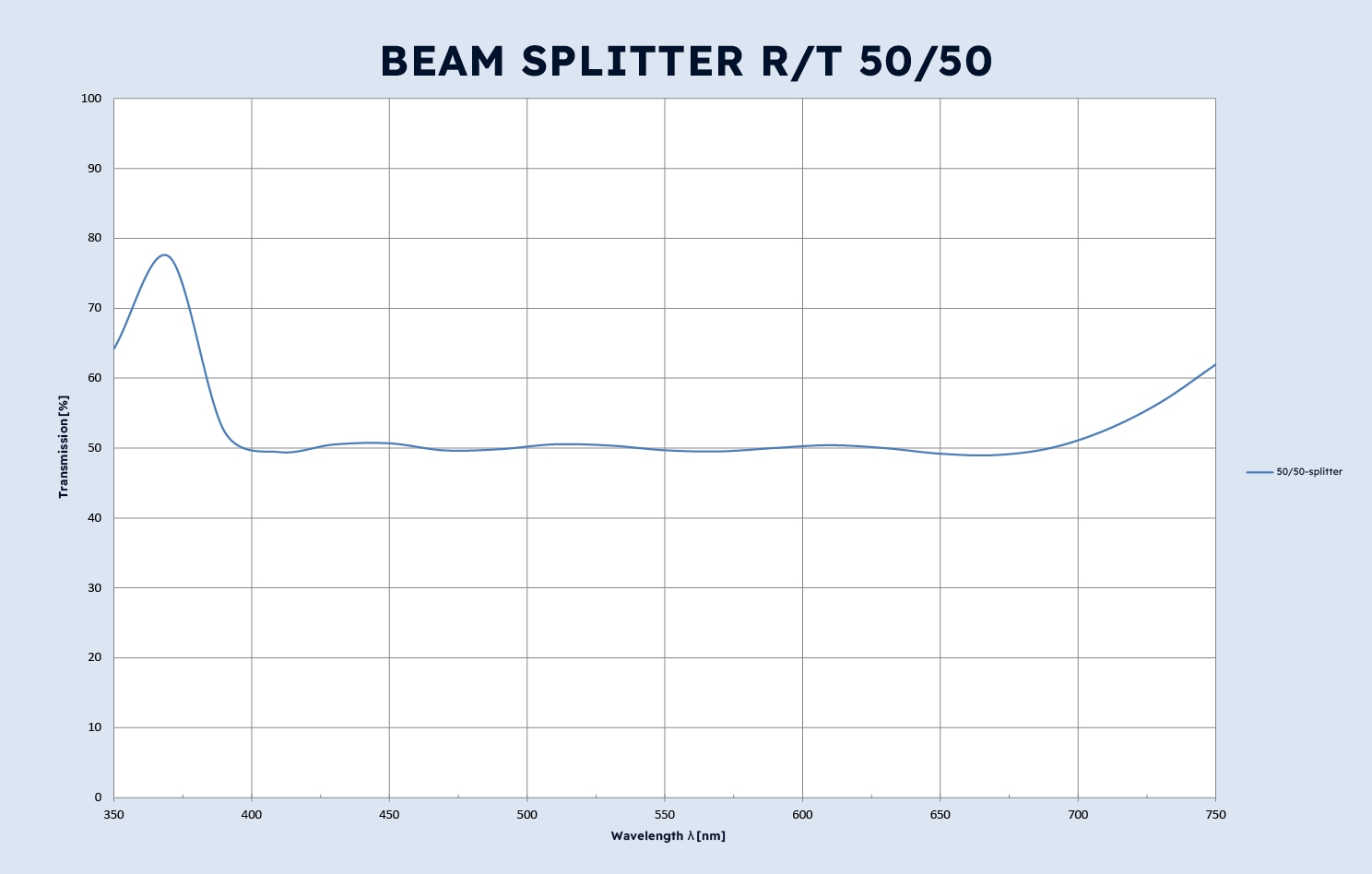

Beamsplitter plates or beamsplitter cubes as per client‘s specification; beamsplitter plates with split ratios of R/T = 30/70, 50/50, 70/30 in VIS und NIR; see Products on stock
Metrology
Achieving reproducible quality
With high-precision measurement technology
You need reliable high quality in our various precision optics, spherical optics, and technical glass products. We achieve this quality for you thanks to our high-quality measurement technology and measuring equipment.
Upon customer request, we will provide you with a test report containing all the required test characteristics. All materials used are tested in accordance with current specifications and certified upon request. We guarantee you consistently high quality!
- Visual defect inspection
- Angle measurement
- Parallelism measurement
- Interferometer evaluation
- Roughness measurement
- Spectral reflection and transmission measurement
Every prototype starts with an idea.
From the idea to series production.
From the idea to prototype production to the manufacture of spherical optics, high-precision flat optics, technical glass, or optical assemblies, we will find an efficient product solution for you.
Concept
No matter how challenging the task, we work with you to develop solutions tailored to your individual needs.
Design
Designing means developing the blueprint for a technical product in such a way that it can be manufactured. We have the relevant expertise and the necessary technical equipment to do this.
Production
Your product is manufactured in our production facility according to your individual specifications. Our many years of experience and modern machine and plant technology are a great advantage for you here.
Testing
All manufactured components undergo the necessary testing processes. The measurement results are documented accordingly.
Delivery
We deliver your components in standard packaging as well as in special packaging tailored to your specific requirements.
