Tailor-made and with highest precision

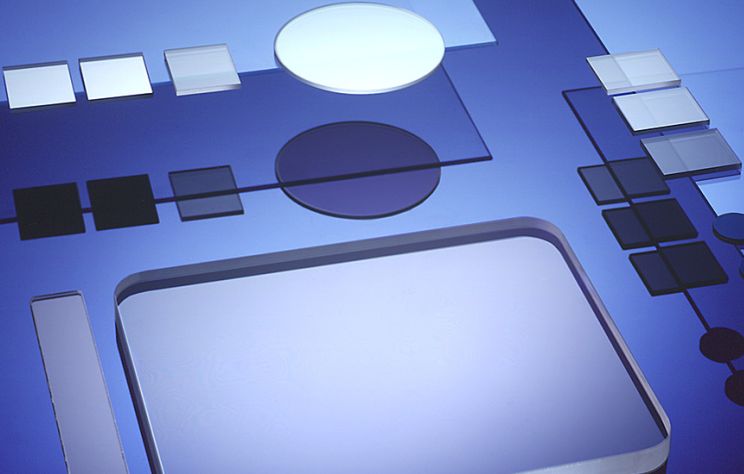

Optical Windows
High demands – simple product solutions. Optical windows from MICROS Optics are characterized by high precision, low surface roughness, and minimal surface imperfections. We guarantee and document all test characteristics in a strictly enforced quality control process. For this purpose, we have precise measuring and testing equipment at our disposal.
In addition to a wide range of materials, our modern machinery enables us to produce high-precision optical windows with very complex geometries and structures – no matter how demanding your requirements are.
Do you have any questions about our optical windows? We are happy to help.
Technical specifications
Applications
Windows and mirrors as well as laser windows and mirrors, filters in all optical densities, beamsplitters, etalons, retardation plates or other special functions in your systems
Material
Optical glasses (from SCHOTT, OHARA, etc.), quartz glass, sapphire, filter glasses, glass ceramics, ceramics, borosilicate glass, special materials (ZnS, etc.)
Dimensions
Round: Ø 0.5 to 1.700 mm
Rectangular: edge lengths of 0.5 mm to 3.000 mm
Thicknesses: 0.08 to 120 mm with tolerance up to ± 10 µm
Shapes
Round, rectangular, elliptical, stepped or as required
Flatness
Up to λ/20 PV depending on dimensions, material and coating
Parallelism
Up to 5" depending on dimensions
Roughness
Up to 0,5 nm RMS
Surface defects
Up to 5/Nx0.04 as per DIN ISO 10110
Achieving reproducible quality
With high-precision measurement technology
You need reliable high quality in our various precision optics, spherical optics, and technical glass products. We achieve this quality for you thanks to our high-quality measurement technology and measuring equipment.
Upon customer request, we will provide you with a test report containing all the required test characteristics. All materials used are tested in accordance with current specifications and certified upon request. We guarantee you consistently high quality!
- Visual defect inspection
- Angle measurement
- Parallelism measurement
- Interferometer evaluation
- Roughness measurement
- Spectral reflection and transmission measurement
Every prototype starts with an idea.
From the idea to series production.
From the idea to prototype production to the manufacture of spherical optics, high-precision flat optics, technical glass, or optical assemblies, we will find an efficient product solution for you.
Concept
No matter how challenging the task, we work with you to develop solutions tailored to your individual needs.
Design
Designing means developing the blueprint for a technical product in such a way that it can be manufactured. We have the relevant expertise and the necessary technical equipment to do this.
Production
Your product is manufactured in our production facility according to your individual specifications. Our many years of experience and modern machine and plant technology are a great advantage for you here.
Testing
All manufactured components undergo the necessary testing processes. The measurement results are documented accordingly.
Delivery
We deliver your components in standard packaging as well as in special packaging tailored to your specific requirements.
