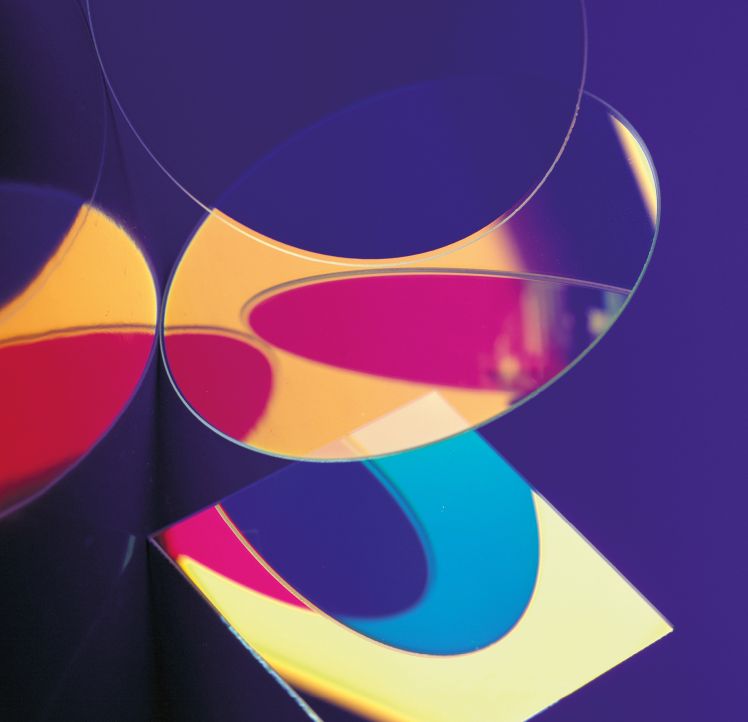

High-quality mirror coatings
Metallic or dielectric
High reflectivity specifically for your application: We design our high-reflection coatings individually for your application. In addition to metals such as aluminum, silver, or gold, we also have dielectric coating materials at our disposal. This enables us to cover a very wide wavelength range.
The mirror coatings have high reflectivity and are ideally suited for your purposes thanks to their efficient design. The exact compositions are developed by our coating experts and are therefore a tailor-made solution for your application.
Do you have any questions about our mirror coatings? We would be happy to advise you on our services.
Technical specifications
Application
Reflection or deflection of light rays; the reflection of substrates is increased up to 99.99% through metallic and/or dielectric coatings
Types of coatings
Metallic high-reflection coatings
Aluminium with protective layer (AL protected)

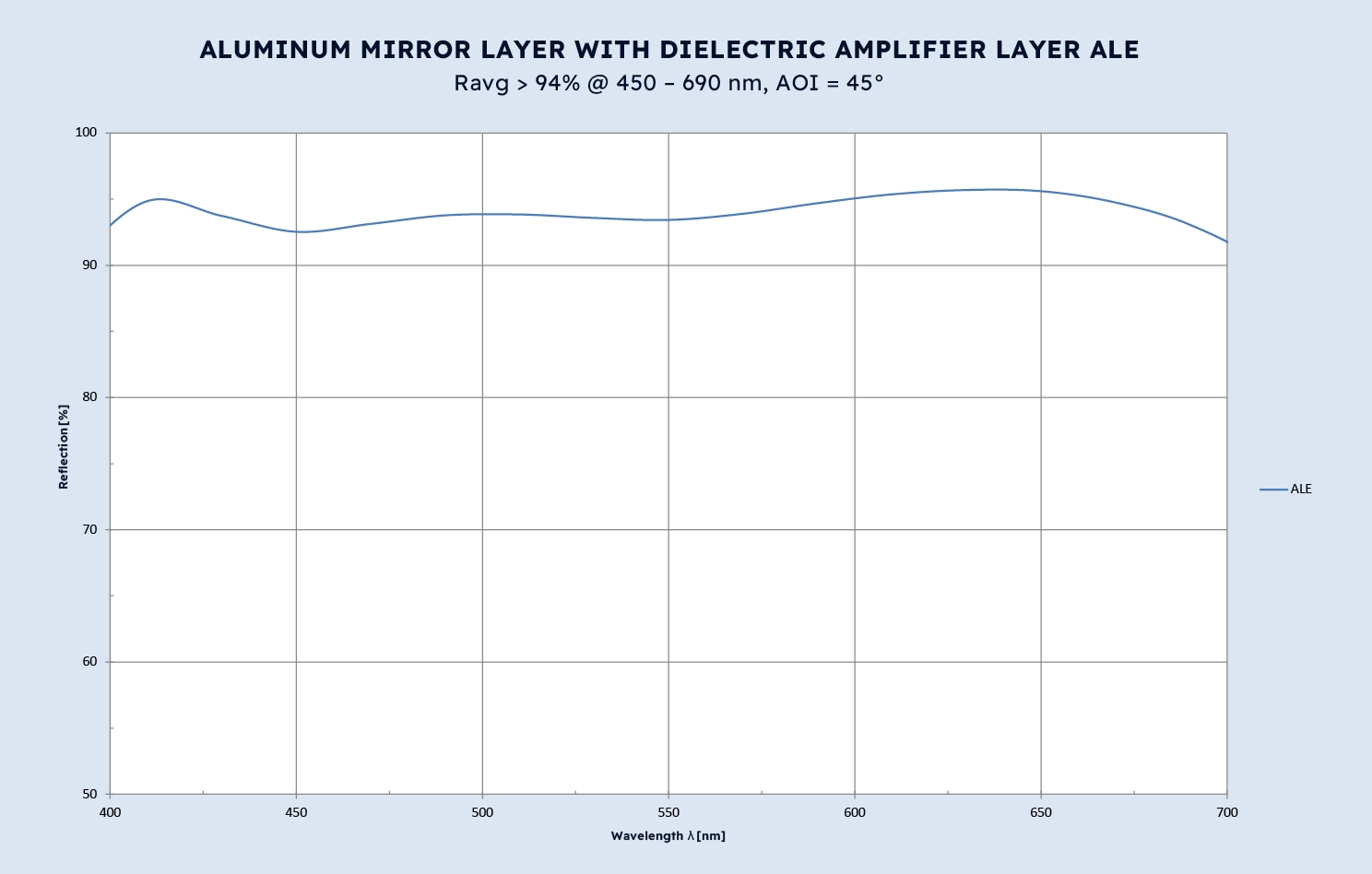

Aluminium with dielectric enhancement layer (AL enhanced)

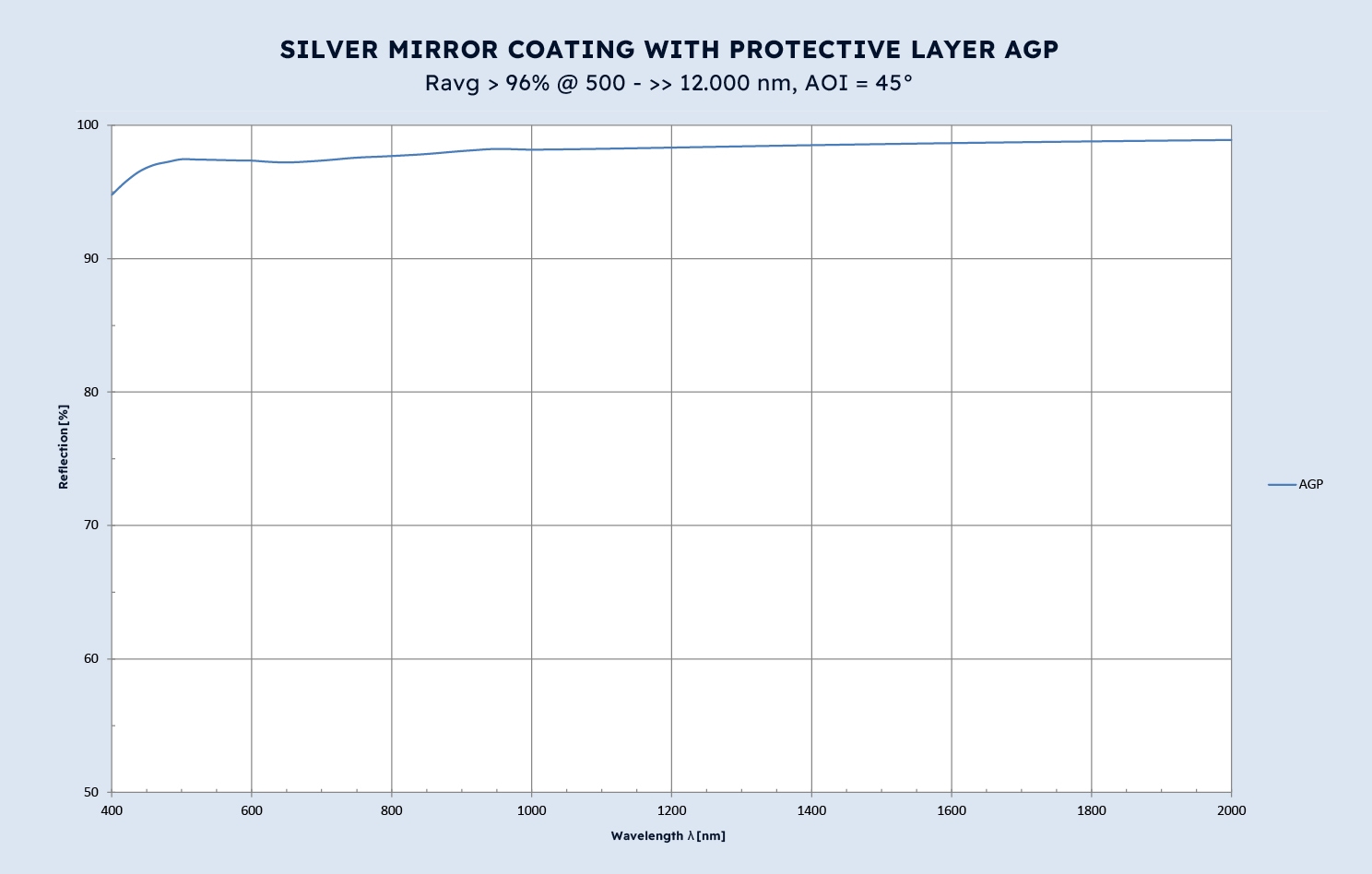

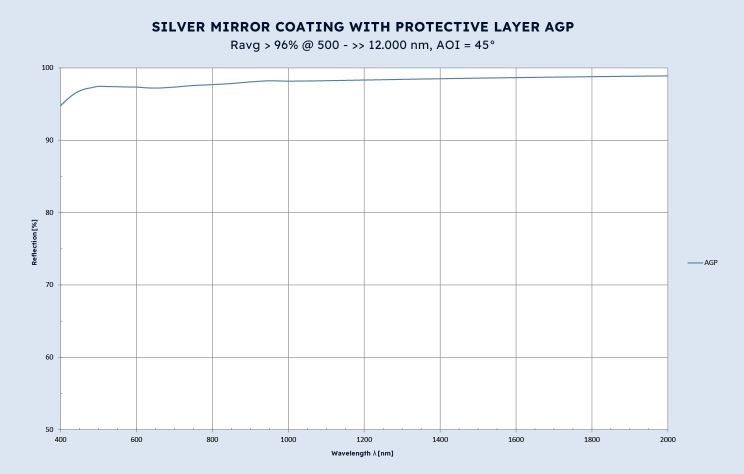

Silver with protective layer (AG protected)

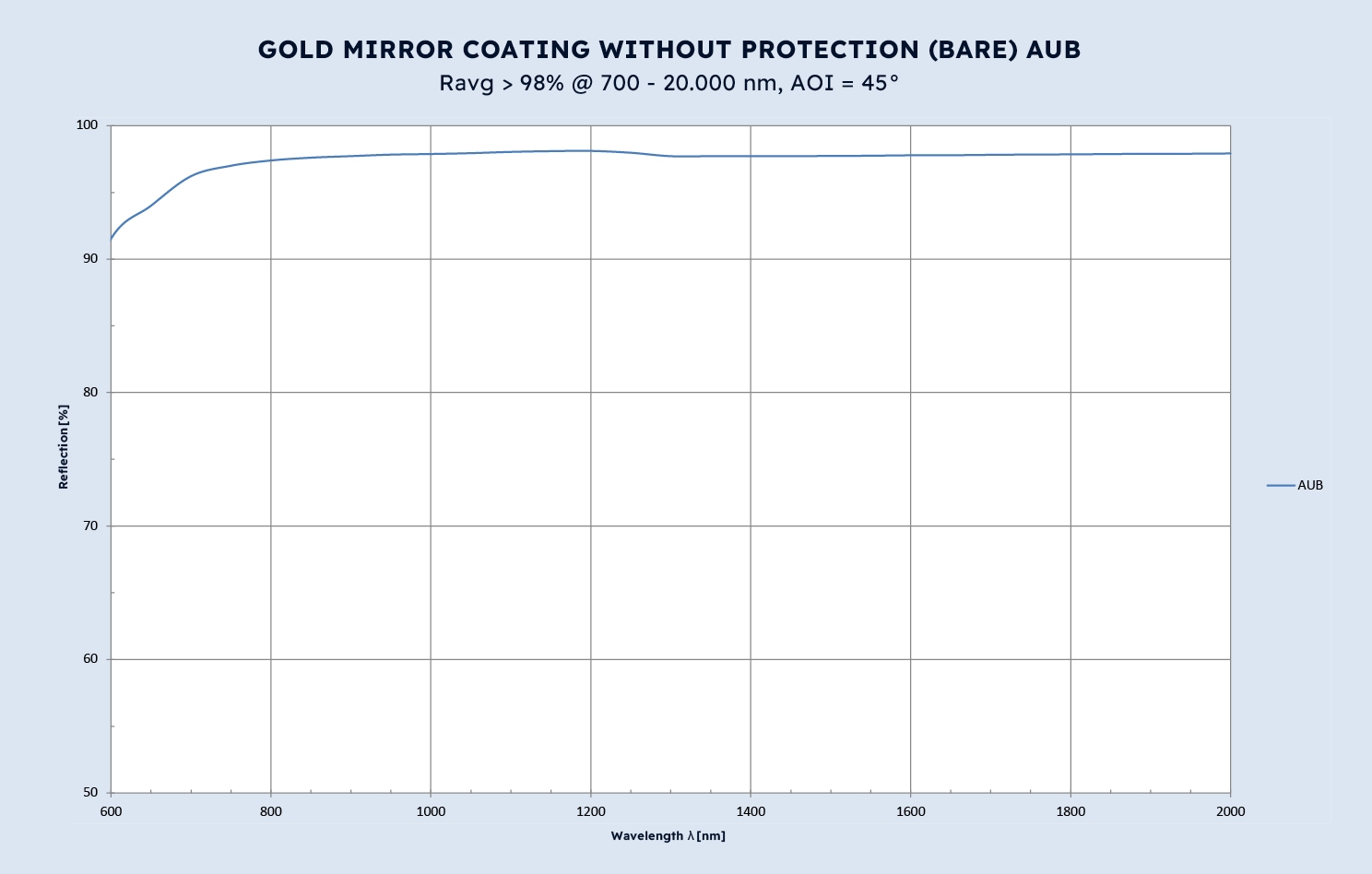

Gold (AU bare)
Gold with protective layer (AU protected)
Dielectric high-reflection coatings

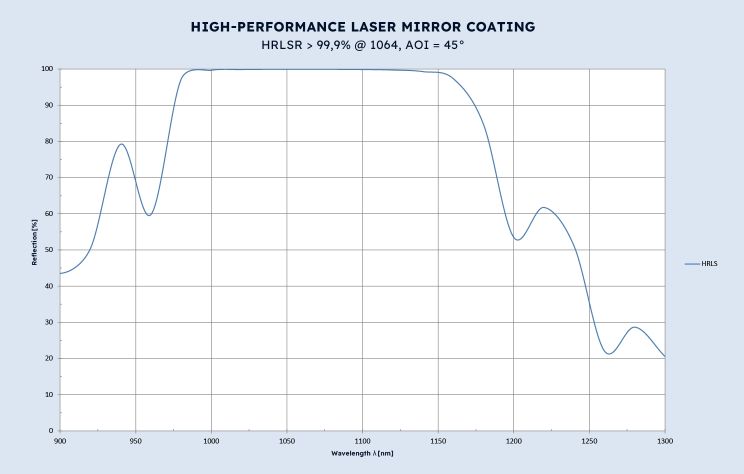

Laser-Line high-reflective coatings

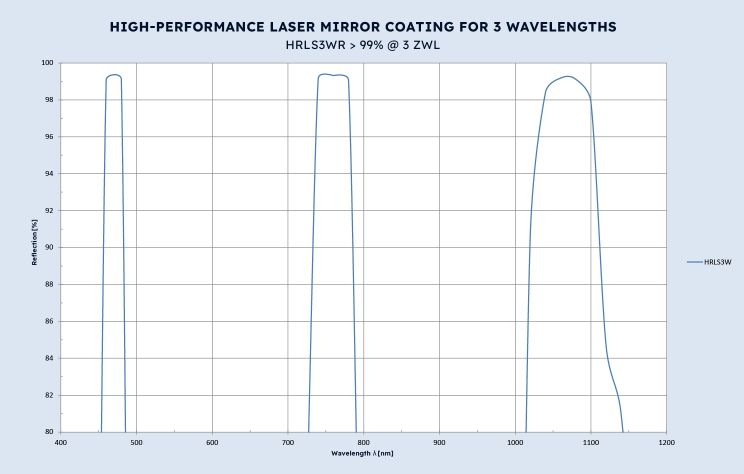

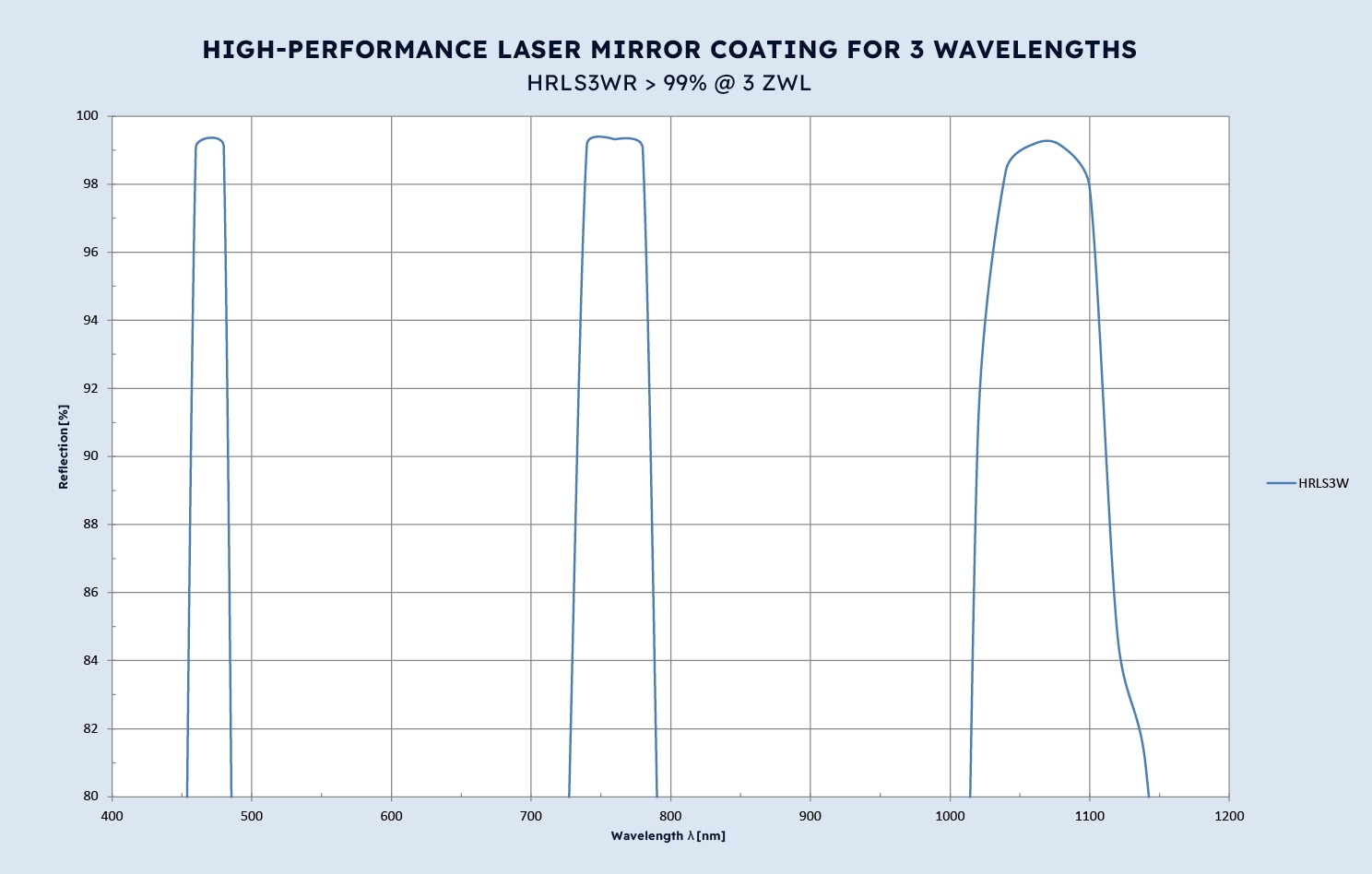

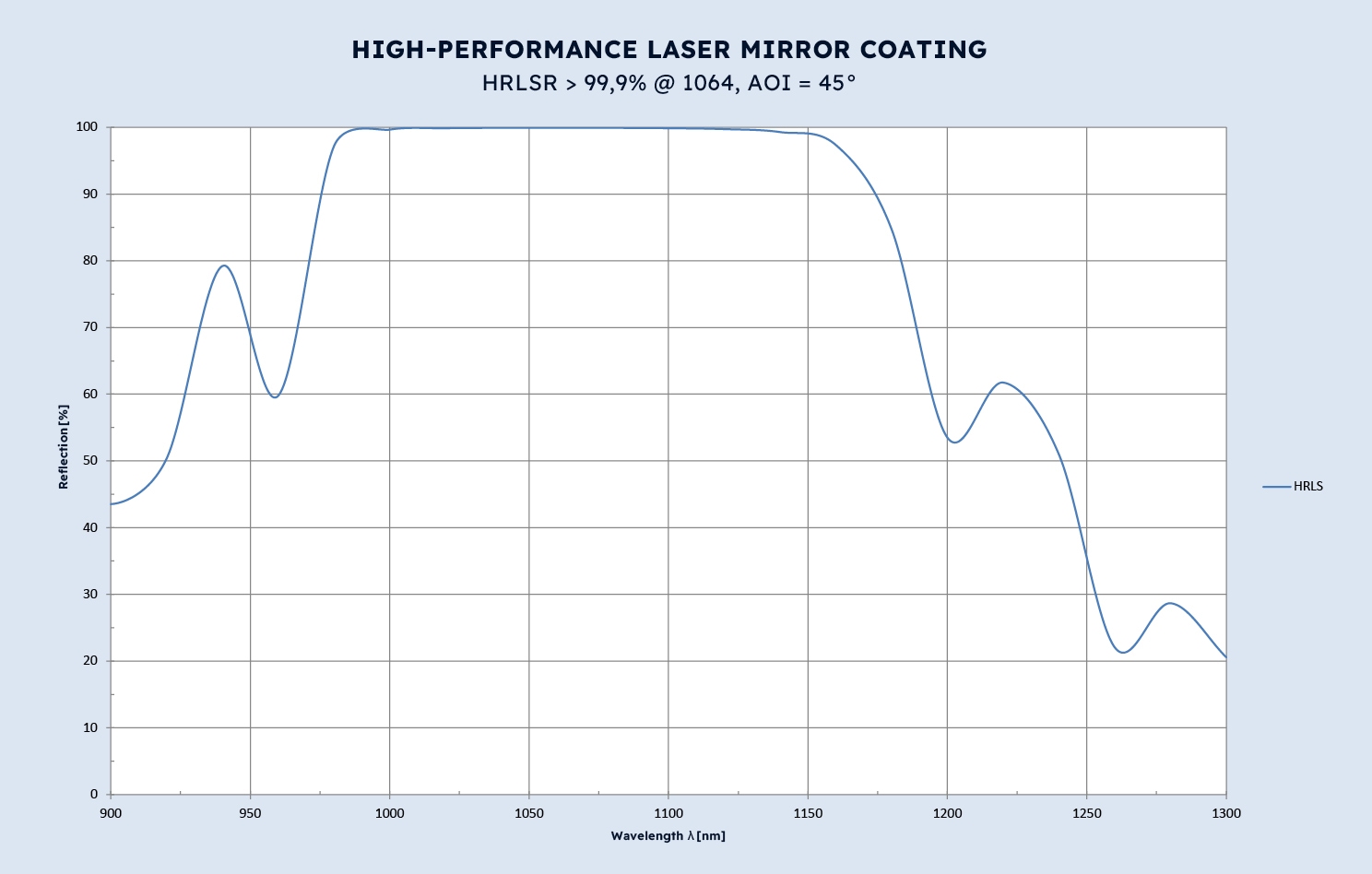

HR laser mirrors for one or several wavelengths
HR laser mirrors with several additional functions

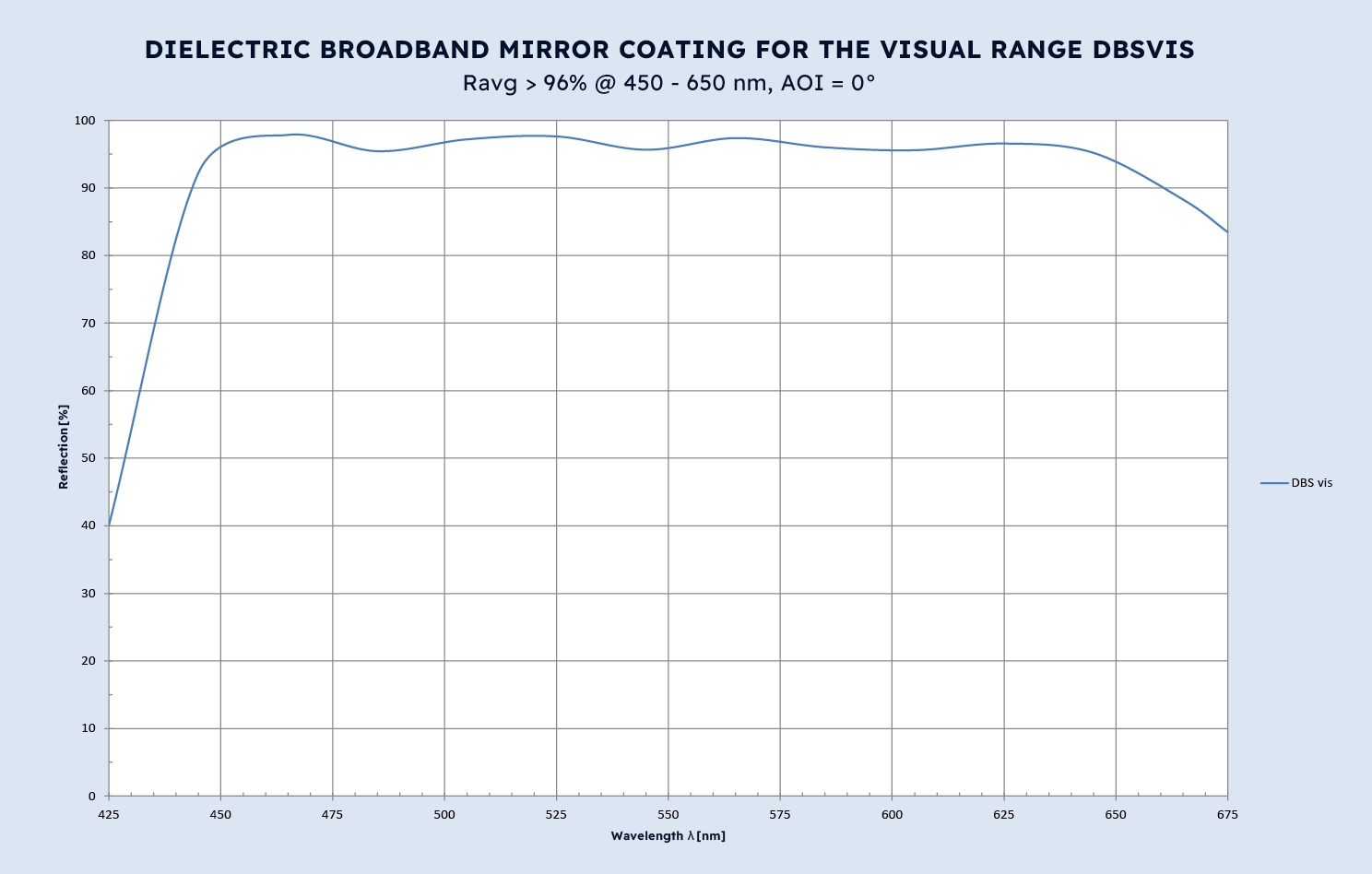

Broadband mirrors with high reflection (e.g. cold light mirror)
Dichroic mirrors
Semi-transparent mirrors
Special reflection coatings as per client’s requirements
Our competences
Hard, scratch-resistant layers; high laser damage thresholds; coating of bonded assemblies possible by using low coating temperatures
Spectral range
metallic mirrors 190 to 12.000 nm; dielectric mirrors 300 nm to 1.600 nm
Angle of incidence
0°-60° s-polarization and p-polarization
Substrate material
Optical glasses, flat glasses, Borosilicate glasses, filter glasses, fused silica, glass ceramics, ceramics, special materials on request
Dimensions
Client-specific optical components and bonded groups
Front surface mirrors with Al coating on flat glasses on request; blanks client’s requirements
Metrology
Achieving reproducible quality
With high-precision measurement technology
You need reliable high quality in our various precision optics, spherical optics, and technical glass products. We achieve this quality for you thanks to our high-quality measurement technology and measuring equipment.
Upon customer request, we will provide you with a test report containing all the required test characteristics. All materials used are tested in accordance with current specifications and certified upon request. We guarantee you consistently high quality!
- Visual defect inspection
- Angle measurement
- Parallelism measurement
- Interferometer evaluation
- Roughness measurement
- Spectral reflection and transmission measurement
Every prototype starts with an idea.
From the idea to series production.
From the idea to prototype production to the manufacture of spherical optics, high-precision flat optics, technical glass, or optical assemblies, we will find an efficient product solution for you.
Concept
No matter how challenging the task, we work with you to develop solutions tailored to your individual needs.
Design
Designing means developing the blueprint for a technical product in such a way that it can be manufactured. We have the relevant expertise and the necessary technical equipment to do this.
Production
Your product is manufactured in our production facility according to your individual specifications. Our many years of experience and modern machine and plant technology are a great advantage for you here.
Testing
All manufactured components undergo the necessary testing processes. The measurement results are documented accordingly.
Delivery
We deliver your components in standard packaging as well as in special packaging tailored to your specific requirements.
