For almost all optical applications
Anti-reflective coatings
Anti-reflective coatings with low absorption and low layer stress, scratch-resistant with high laser destruction thresholds: We provide high-quality anti-reflective coatings for almost every industry.
Our high-quality anti-reflective coatings significantly reduce the reflection of light on the surface of the substrate. This minimizes annoying reflections and achieves better light transmission. A homogeneous anti-reflective coating across the entire surface is also crucial and a quality feature of our services. This prevents unwanted spectral color differences and ensures the required spectral properties. What dimensions would you like us to produce for you? We would be happy to advise you on all our anti-reflective coating services.
Technical specifications
Application
Nearly all optical applications in industry and measurement technology require substrates with anti-reflective coatings.
In this, the transmission of substrates is increased by reduced reflection.
The coatings can be optimized for one or several wavelengths.
Types of coating
Single-layers coatings (MgF2)

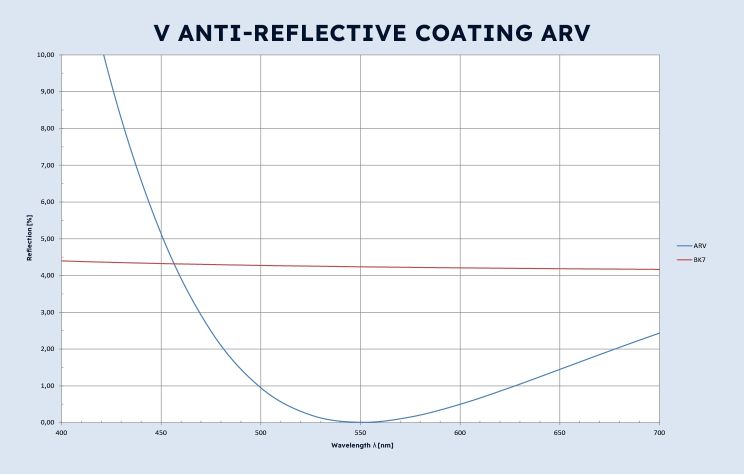

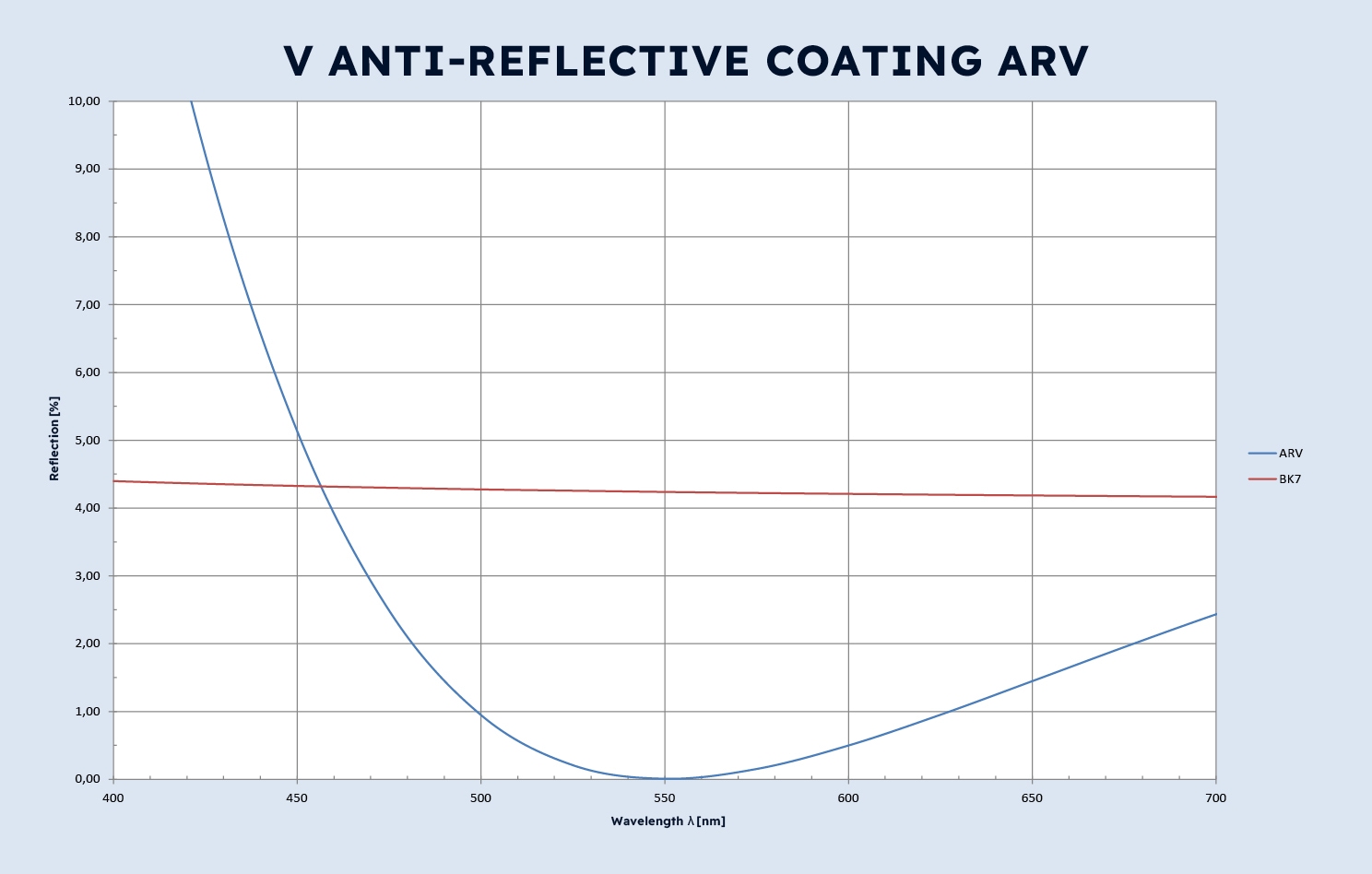

V-coating for individual wavelengths
Double-V and triple-V coatings for several wavelengths

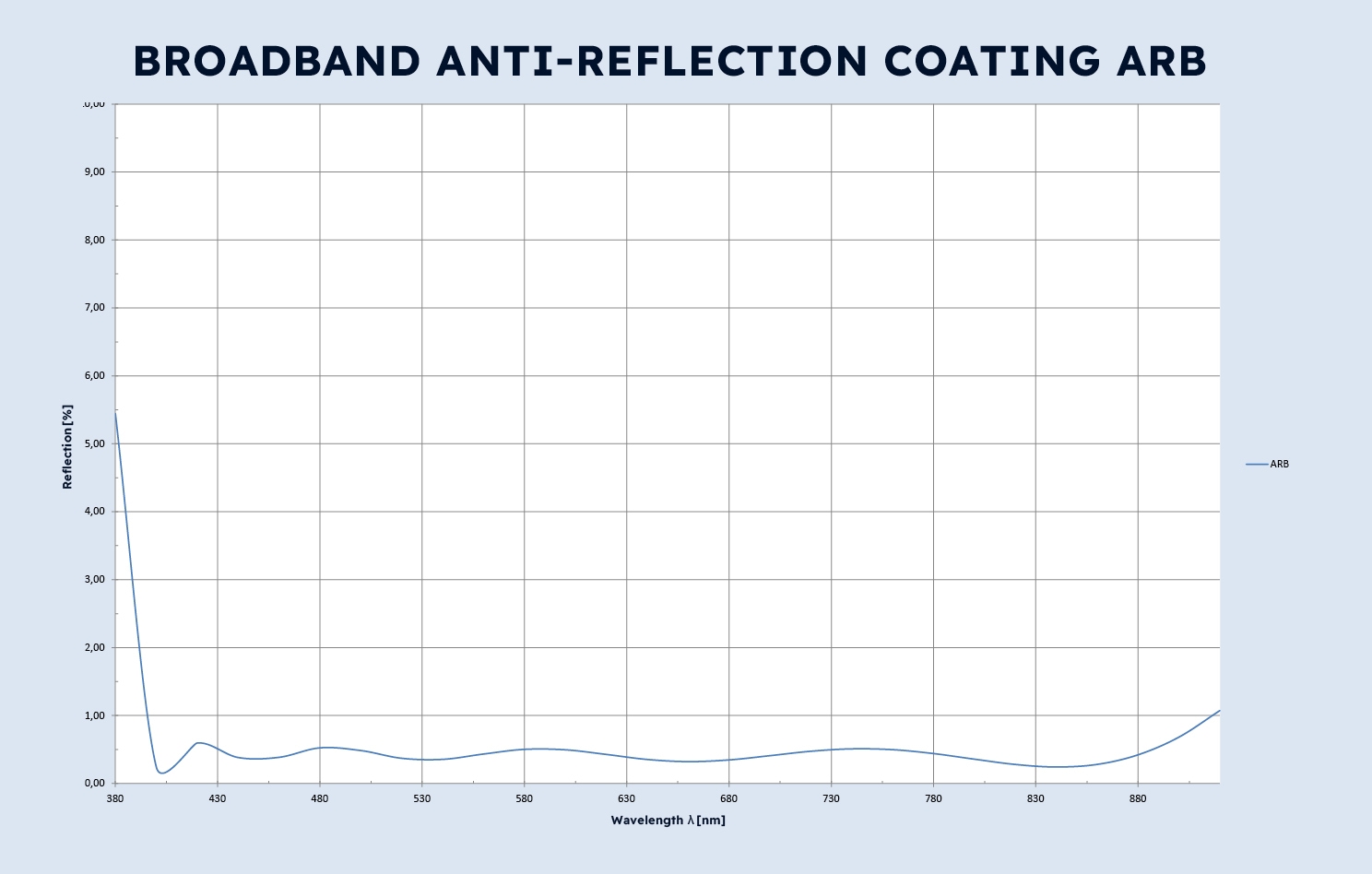

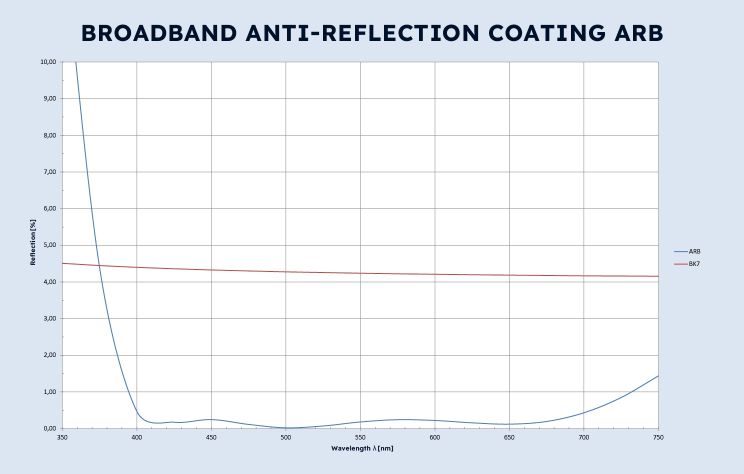

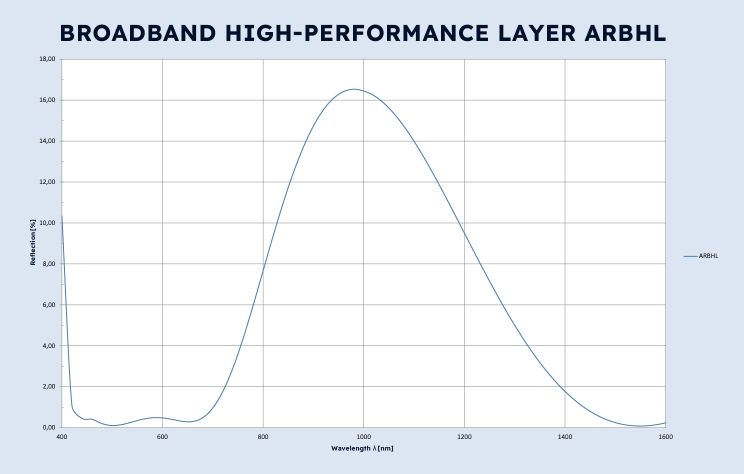

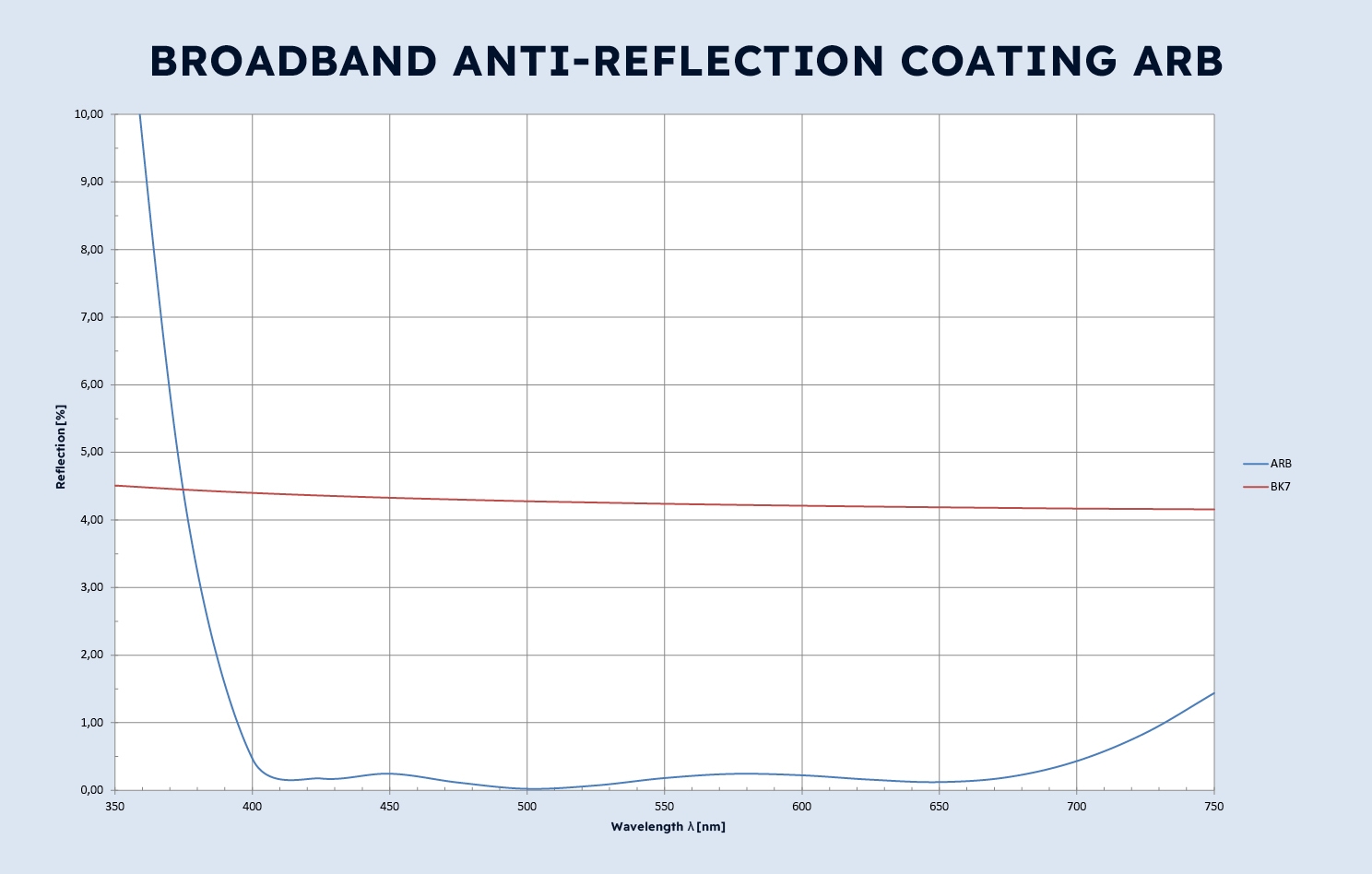

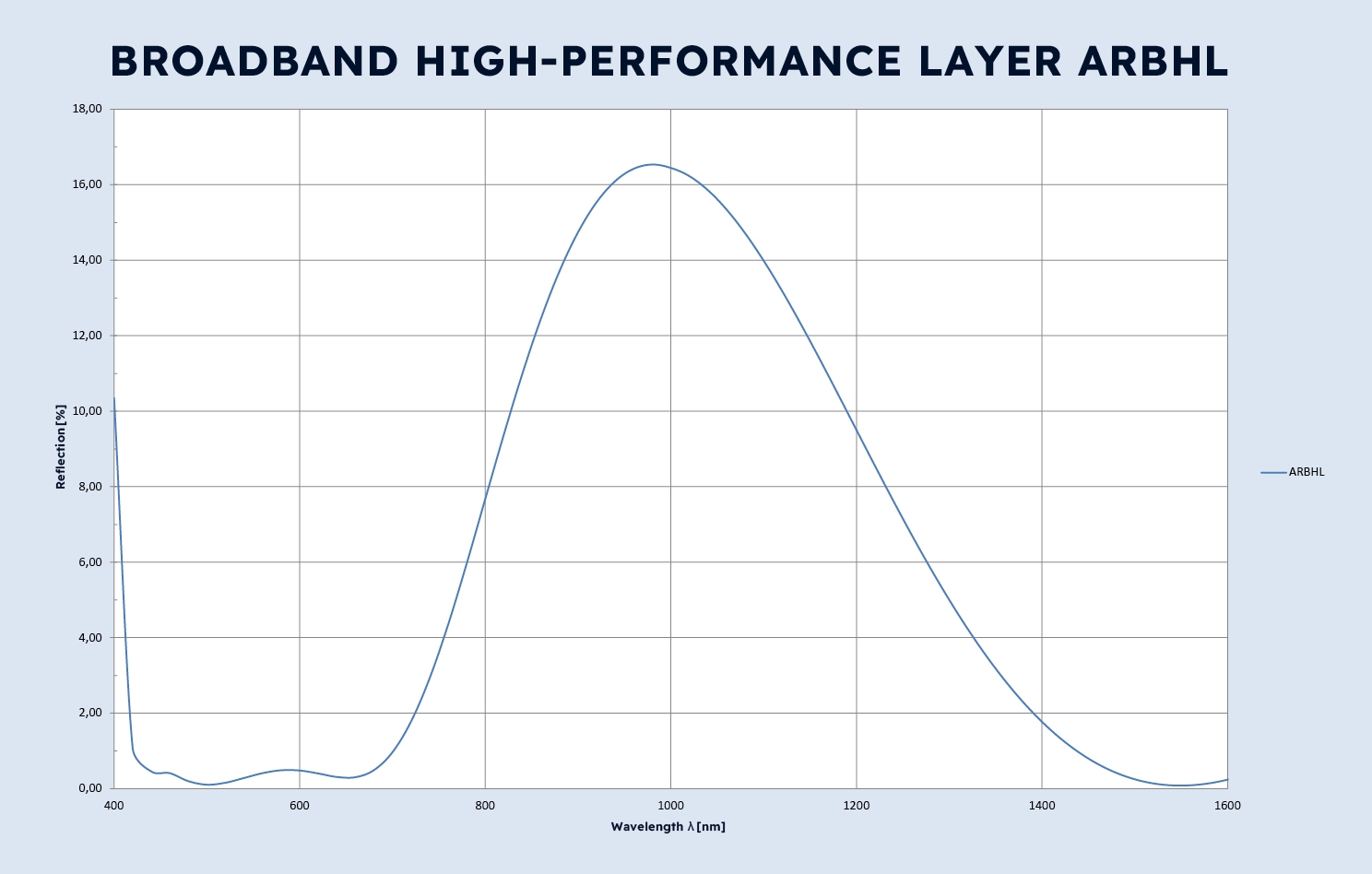

Broadband multilayer AR-coating
Laser coatings
Special coatings as per client’s requirements
Our competences
Hard, scratch-resistant coatings; less absorption; low layer tension; high laser damage thresholds; coating of bonded assemblies possible by using low coating temperatures
Spectral range
Standard 300 nm to 1.600 nm; other wavelengths on request
Substrate material
Optical glasses, flat glasses, colour glasses, fused silica, sapphire, glass ceramics, ceramics, silicate glasses, semi-conductor materials, special materials on request
Dimensions
Client-specific optical components (plano plates, prisms, lenses…) and bonded groups
Anti-reflective flat glasses on request with blanks as per client’s requirements
Metrology
Achieving reproducible quality
With high-precision measurement technology
You need reliable high quality in our various precision optics, spherical optics, and technical glass products. We achieve this quality for you thanks to our high-quality measurement technology and measuring equipment.
Upon customer request, we will provide you with a test report containing all the required test characteristics. All materials used are tested in accordance with current specifications and certified upon request. We guarantee you consistently high quality!
- Visual defect inspection
- Angle measurement
- Parallelism measurement
- Interferometer evaluation
- Roughness measurement
- Spectral reflection and transmission measurement
Every prototype starts with an idea.
From the idea to series production.
From the idea to prototype production to the manufacture of spherical optics, high-precision flat optics, technical glass, or optical assemblies, we will find an efficient product solution for you.
Concept
No matter how challenging the task, we work with you to develop solutions tailored to your individual needs.
Design
Designing means developing the blueprint for a technical product in such a way that it can be manufactured. We have the relevant expertise and the necessary technical equipment to do this.
Production
Your product is manufactured in our production facility according to your individual specifications. Our many years of experience and modern machine and plant technology are a great advantage for you here.
Testing
All manufactured components undergo the necessary testing processes. The measurement results are documented accordingly.
Delivery
We deliver your components in standard packaging as well as in special packaging tailored to your specific requirements.
