For technical applications

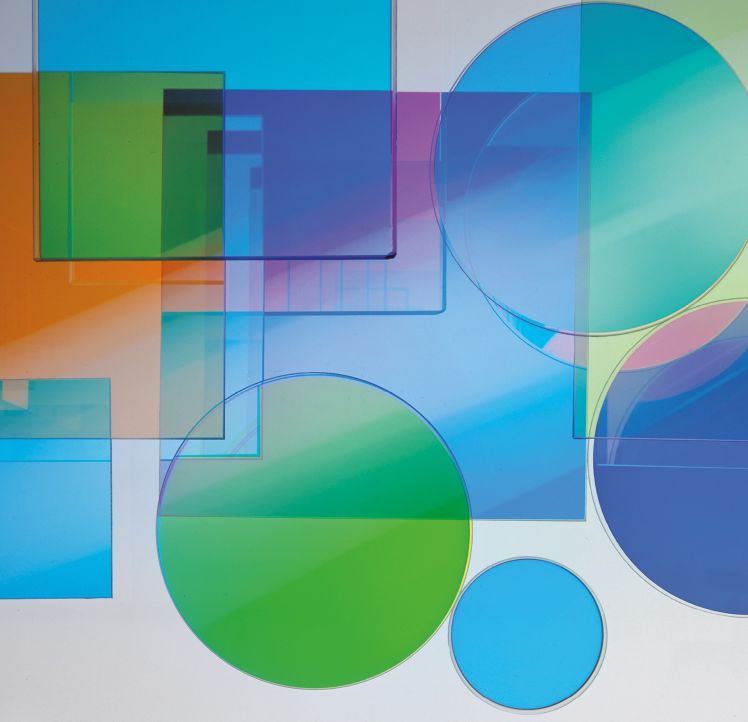

High-quality filter coatings
What are your requirements for high-quality filter coatings? Particularly scratch-resistant? Highly resilient? Precise measurement results during use – no matter how complex your requirements are, our solution in the field of optical filter layers is just as efficient.
The precise filter layers selectively block or allow certain wavelengths of light. Depending on your requirements, the filter can either be a bandpass filter that only allows a specific wavelength range to pass through, or a blocking filter that blocks certain wavelengths. We will work with you to find the right and efficient solution in the field of filter layers. Let us advise you now!
Technical specifications
Application
For elimination of disturbing extraneous light in optical measurement systems; e.g. in the use of laser or LEDs
Coating types

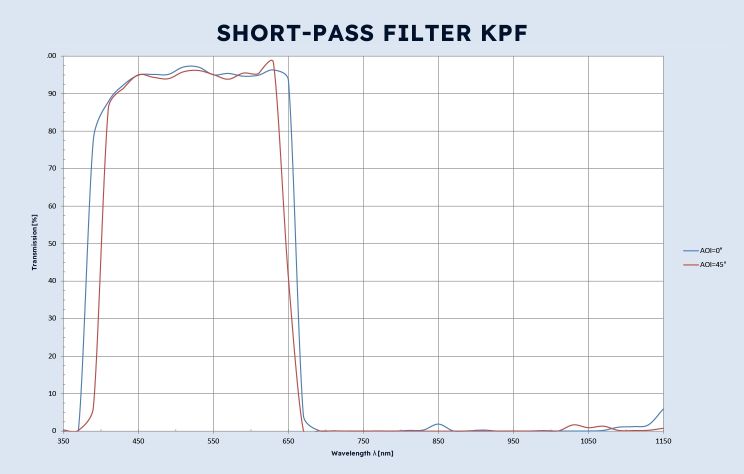

Short-pass filter

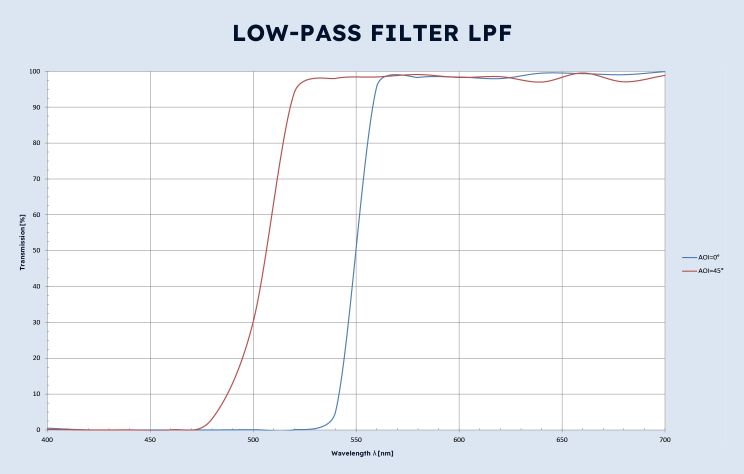

Long-pass filter

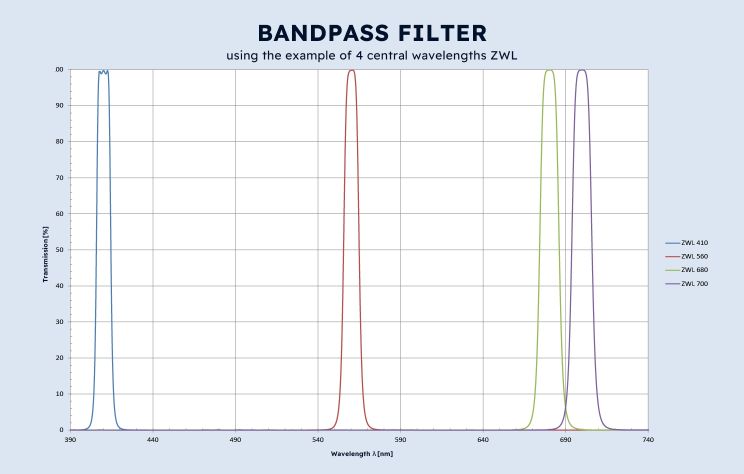

Variable bandpass filter
Narrowband filter
Dichroic colour and illumination filter
Heat reflection filter
Neutral density filter
Special filters as per client’s requirements
Our competences
Hard, scratch-resistant, thermally and mechanically stable coatings; high laser damage thresholds; for extreme environmental conditions; outer space compatible; saltwater resistant
Spectral range
Standard 300 nm to 1.600 nm; other wavelengths on request
Substrate material
Optical glasses, flat glasses, Borosilicate glasses, filter glasses, fused silica, special materials on request
Dimensions
Client-specific optical components; coated flat glasses on request; blanks as per client’s requirements
Metrology
Achieving reproducible quality
With high-precision measurement technology
You need reliable high quality in our various precision optics, spherical optics, and technical glass products. We achieve this quality for you thanks to our high-quality measurement technology and measuring equipment.
Upon customer request, we will provide you with a test report containing all the required test characteristics. All materials used are tested in accordance with current specifications and certified upon request. We guarantee you consistently high quality!
- Visual defect inspection
- Angle measurement
- Parallelism measurement
- Interferometer evaluation
- Roughness measurement
- Spectral reflection and transmission measurement
Every prototype starts with an idea.
From the idea to series production.
From the idea to prototype production to the manufacture of spherical optics, high-precision flat optics, technical glass, or optical assemblies, we will find an efficient product solution for you.
Concept
No matter how challenging the task, we work with you to develop solutions tailored to your individual needs.
Design
Designing means developing the blueprint for a technical product in such a way that it can be manufactured. We have the relevant expertise and the necessary technical equipment to do this.
Production
Your product is manufactured in our production facility according to your individual specifications. Our many years of experience and modern machine and plant technology are a great advantage for you here.
Testing
All manufactured components undergo the necessary testing processes. The measurement results are documented accordingly.
Delivery
We deliver your components in standard packaging as well as in special packaging tailored to your specific requirements.
2001
founded
2.700 m²
production area
2
locations
DIN EN ISO 9001
certified
QUALITY
made in Germany
What you can rely on
Made in Germany
International
High quality
Professional
Independent
