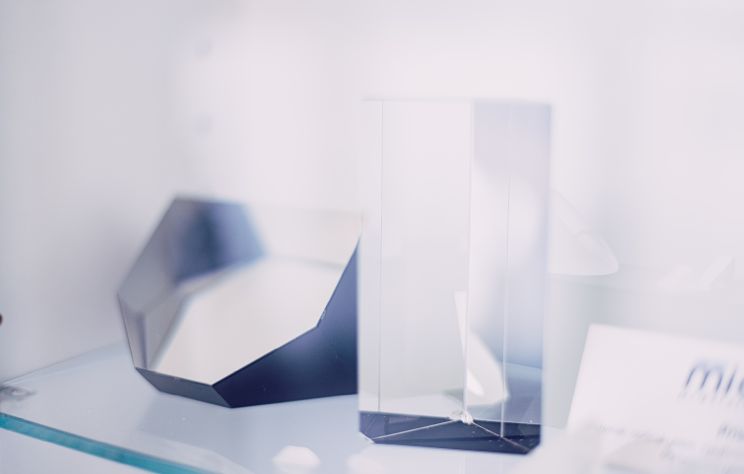

Optical prisms and wedge prisms customized to your needs
High-quality prisms and wedge plates
Effective optical performance – We manufacture small, large, and high-precision prisms and wedge plates specifically tailored to your requirements.
Precise optical components are essential for many technical applications. Thanks to our many years of experience in the manufacture of optical components, we guarantee the highest precision for your product goals. We are happy to advise you on all your individual projects.
Technical specifications
Designs
Wedged Windows (round, angular, elliptical)
90° prisms, 60° prisms
Roof prisms
Rhomboid prisms
Dove prisms
Penta prisms
Conical prisms
Special prisms and optical bonding groups on request
Material
Optical glasses (by SCHOTT, OHARA …), fused silica, filter glasses, glass ceramics, special materials
Dimensions
1 to 200 mm
Flatness
Up to λ/20 PV depending on dimensions, material and coating
Angular accuracy
Up to ±2" depending on dimensions
Pyramidal errors
Up to 2"
Deflection accuracy
Up to ±2"
Roughness
0,5 nm RMS
Surface defects
5/Nx0.004 as per DIN ISO 10110
Laser damage threshold
20J/cm² (with special polishing technology and coating)
Coating
Dielectric and metallic, 300 nm to 1.600 nm, refer to Optical coatings
Metrology
Achieving reproducible quality
With high-precision measurement technology
You need reliable high quality in our various precision optics, spherical optics, and technical glass products. We achieve this quality for you thanks to our high-quality measurement technology and measuring equipment.
Upon customer request, we will provide you with a test report containing all the required test characteristics. All materials used are tested in accordance with current specifications and certified upon request. We guarantee you consistently high quality!
- Visual defect inspection

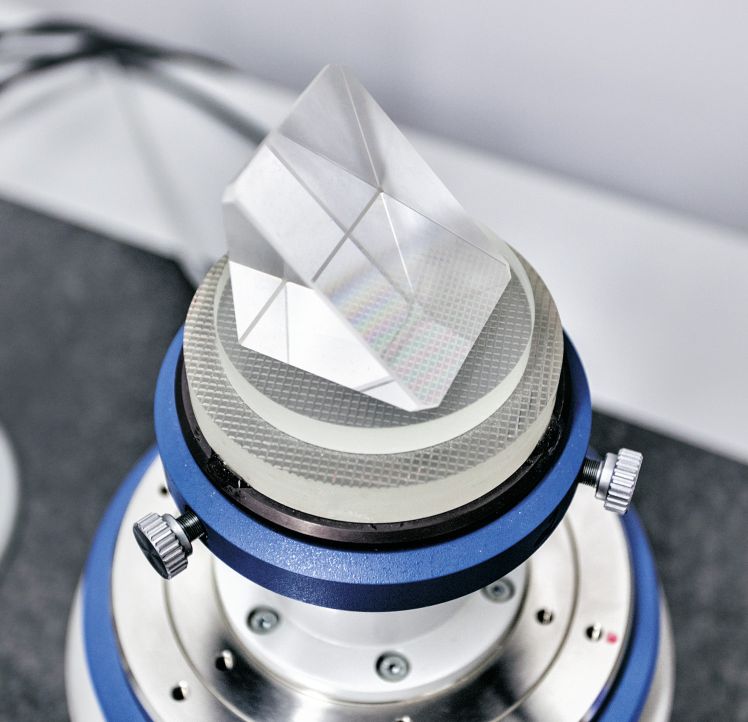

- Angle measurement
- Parallelism measurement
- Interferometer evaluation
- Roughness measurement
- Spectral reflection and transmission measurement
Every prototype starts with an idea.
From the idea to series production.
From the idea to prototype production to the manufacture of spherical optics, high-precision flat optics, technical glass, or optical assemblies, we will find an efficient product solution for you.
Concept
No matter how challenging the task, we work with you to develop solutions tailored to your individual needs.
Design
Designing means developing the blueprint for a technical product in such a way that it can be manufactured. We have the relevant expertise and the necessary technical equipment to do this.
Production
Your product is manufactured in our production facility according to your individual specifications. Our many years of experience and modern machine and plant technology are a great advantage for you here.
Testing
All manufactured components undergo the necessary testing processes. The measurement results are documented accordingly.
Delivery
We deliver your components in standard packaging as well as in special packaging tailored to your specific requirements.
